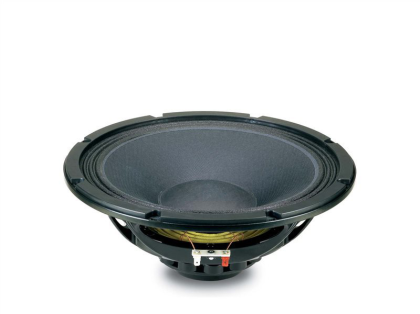

Eighteen Sound 12NMB420 Високоговорител
Цена:
€144.00
281.64 лв.
-
Код:12NMB420
-
Тегло:0.000 кг
Features
- 100,5 dB SPL 1W / 1m average sensitivity
- 65 mm (2,5 in) Interleaved Sandwich Voice coil (ISV)
- 300 W AES power handling
- Single Demodulating Ring (SDR) for lower distortion
- External neodymium magnet assembly
- Weather protected cone and plates for outdoor usage
- Specially designed for compact two way systems
Бърза поръчка
Само попълнете 2 полета
Specifications
- Nominal Diameter300 mm ( in)
- Nominal Impedance8 Ω
- Minimum Impedance6.9 Ω
- Nominal Power Handling1300 W
- Continuous Power Handling2450 W
- Sensitivity3100.5 dB
- Frequency Range55 - 6000 Hz
- Voice Coil Diameter65 mm (2.5 in)
- Winding Materialaluminum
Parameters
- Resonance Frequency53 Hz
- Re5.2 Ω
- Qes0.3
- Qms3.6
- Qts0.28
- Vas105.0 dm3 (3.71 ft3)
- Sd531.0 cm2 (82.31 in2)
- Xmax4.0 mm
- Mms33.5 g
- Bl13.9 Txm
- Le0.2 mH
- EBP176 Hz
