ULTRA-X80
-
Код:150
-
Тегло:60.000 кг

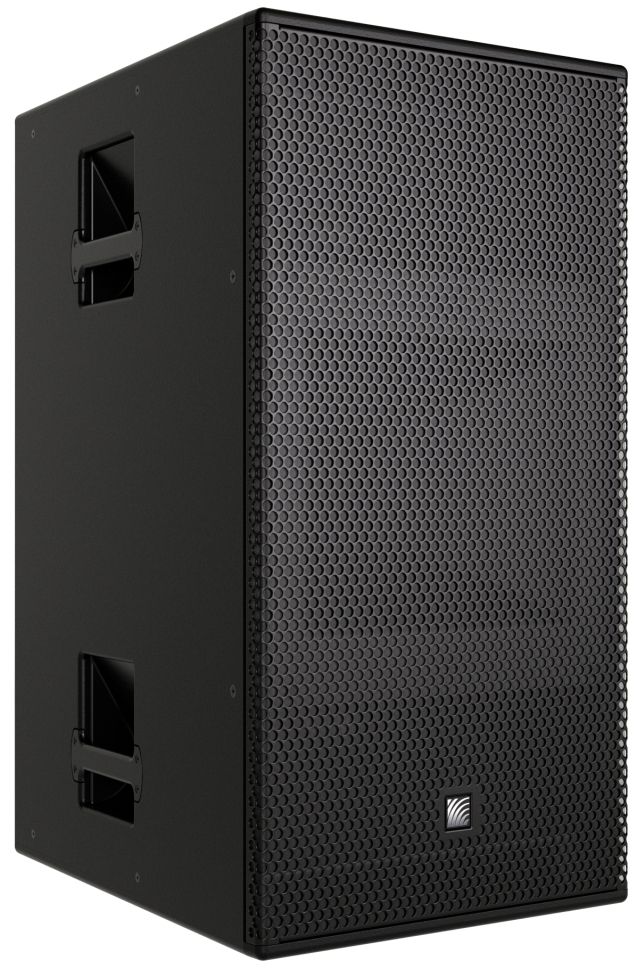

The Meyer Sound ULTRA-X80 loudspeaker offers powerful, compact sound reinforcement with Meyer Sound’s signature clarity and performance, all in a lightweight, versatile design. Ideal for small to medium-sized venues, live sound, AV presentations, and installation applications, the ULTRA-X80 adapts easily to a variety of configurations while delivering consistent, high-fidelity audio.
Бърза поръчка
ULTRA-X80 | X82 SPECIFICATIONS
|
ACOUSTICAL1 |
ULTRA-X80 |
ULTRA-X82 |
|
Operating Frequency Range |
55 Hz - 18 kHz, ±6 dB |
|
|
AES75 Maximum Linear Sound Levels2 |
122 dBZ, 140 dBZpk, 119.6 dBA, with an RMS input level of +3.0 dBV, 50º C |
123 dBZ, 141 dBZpk, 121 dBA, with an RMS input level of +3.0 dBV, 50º C |
|
COVERAGE |
||
|
Horizontal Coverage |
95° |
50° |
|
Vertical Coverage |
40° |
40° |
|
TRANSDUCERS |
||
|
Low Frequency |
Two 12-inch long-excursion cone drivers |
|
|
High Frequency |
One 4-inch diaphragm compression driver connected to a rotatable horn |
|
|
PHYSICAL |
||
|
Weight |
62.6 kg (138 lb) |
|
|
Enclosure |
Premium multi-ply birch, slightly textured black finish. The Outdoor Temporary (OT) version includes additional treatment of the cabinet wood. |
|
|
Protective Grille |
Powder-coated, stamped steel. The OT version also includes stainless steel mesh behind the grille. |
|
|
Rigging |
M8 x 1.25 mm accessory attachment points, six on bottom, six on top |
|
|
IEC Ingress Protection Rating (IP Rating) |
The OT version is IP55 rated, when connected to cables terminated with Neutrik TOP connectors |
|
|
AC POWER |
||
|
Connector |
Neutrik powerCON TRUE1 TOP (True Outdoor Protection) |
|
|
Operating Voltage Range |
200 – 240 V AC, 50 or 60 Hz |
|
|
POWER CONSUMPTION |
||
|
Max Long-Term Continuous Power (>10 sec) |
900 W |
|
|
Burst Power (<1 sec) |
2400 W |
|
|
Idle Power |
55 W |
|
|
ANALOG AUDIO INPUT3 |
||
|
Connector |
Neutrik XLR 3-pin TOP (True Outdoor Protection) female input with male loop output. |
|
|
Input Level |
Source must be capable of producing +24 dBU into 600 Ω to produce the maximum peak SPL over the operating bandwidth of the loudspeaker. |
|
|
DIGITAL AUDIO INPUT3 |
||
|
Connector |
Neutrik etherCON TOP (True Outdoor Protection) |
|
|
Digital Format |
AVB, Milan Certified |
|
|
MONITORING |
||
|
Telemetry |
Loudspeaker telemetry transmitted via the Ethernet port, displayed in software |
|
