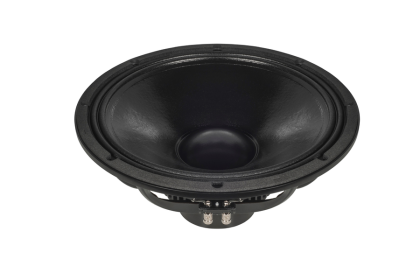

15ND840

Specifications

• Nominal Impedance8 Ω
• Minimum Impedance5.7 Ω
• Nominal Power Handling¹600 W
• Sensitivity²99.0 dB
• Frequency Range38 - 4000 Hz
• Voice Coil Diameter75 mm (2.95 in)
• Winding Materialcopper
• Winding Depth23.5 mm (0.93 in)
• Magnetic Gap Depth
• 9.0 mm (0.35 in)

• Parameters


• Resonance Frequency43 Hz
• Re5.0 Ω
• Qes0.39
• Qms6.6
• Qts0.37
• Vas163.0 dm³ (5.76 ft³)
• Sd881.4 cm² (136.62 in²)
• η₀3.1 %
• Xmax9.5 mm
• Xvar10.0 mm
• Mms94.0 g
• Bl17.9 Txm
• Le0.43 mH
• EBP110 Hz
