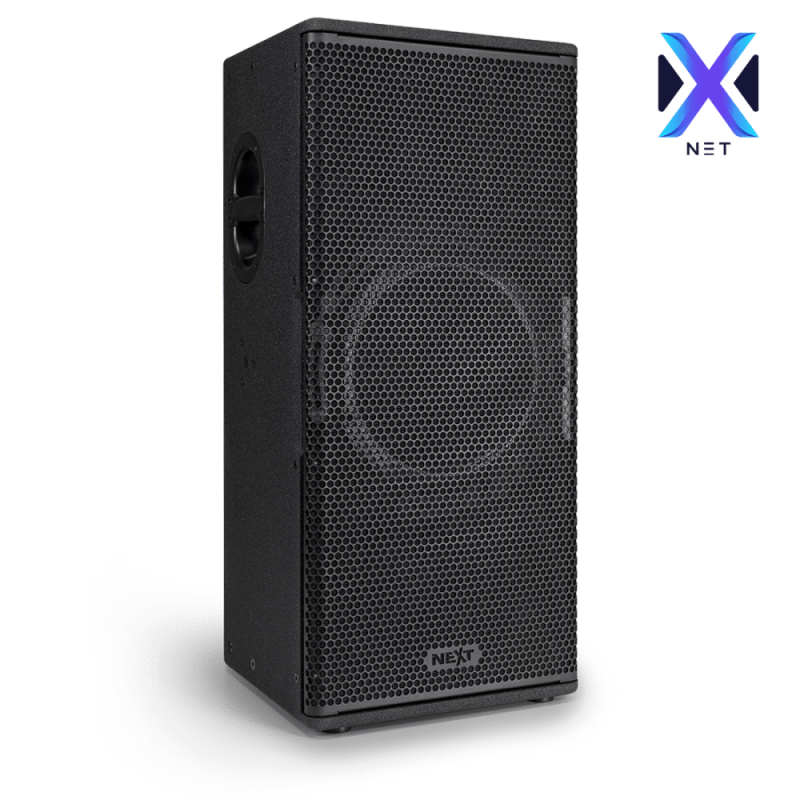

NEXT SP12 ACTIVE 3-WAY POINT-SOURCE SPEAKER
Бърза поръчка
Само попълнете 2 полета
NEXT SP12 ACTIVE 3-WAY POINT-SOURCE SPEAKER
TECHNICAL SPECIFICATIONS
Product Type
Active Point Souce Speaker
Frequency Response (-6dB)
48Hz - 21.000Hz
Phase Response
±25º (80Hz - 21kHz) with FIR Filters
Nominal Coverage (-6dB)
80° H x 45° V Hand Rotatable Horn
RMS Power
1920W (LF:1500W | MF:245W | HF:175W)
Maximum SPL Pgm/Peak (calculated)
142dB (AES75)
Low Frequency Driver
2 x 12" / 3" VC, Neodymium, B&C Custom Speaker
High Frequency Driver
1 x 1.4" Neodymium Coaxial Ring Radiator Driver (MF: 3" VC | HF: 2" VC)
Frequency / Type of X-Over (LF to MF)
500Hz
Frequency / Type of X-Over (MF to HF)
4500Hz
Amplifier Technology
3-Channel UMAC Class D - Full Bandwidth PWM Modulator With Ultra-Low Distortion
Input Sensitivity
+8dBu
Maximum Input Level
+21.5dBu
DSP Technology
96kHz / 40 bit SHARC DSP
Latency
1.5ms
DSP Adjustable Parameters
Filters: PEQ, FIR, hi/lo-shelving, all-pass, band-pass, hi/lo-pass | Limiters: RMS Voltage, Peak Voltage | Groups: Mute, Delay, Level, Polarity, EQ
DSP Presets
24 (3 User Presets)
Delay Adjustment
500ms (172m) on Input + 400ms (138m) on Groups
Control Type
Control via LCD and Encoder on the Back Panel | Control via Software using Ethernet - Max. Cable Length 70m
Audio Signal Inputs
Analog | AES (AESOP)
Input Connectors
1 x XLR | 1 x Neutrik EtherCON®
Audio Signal Outputs
Analog | AES (AESOP)
Output Connectors
1 x XLR | 1 x Neutrik EtherCON®
Protections
Clip Limiter | Temperature | Over Current | DC Protection | HF Protection
Operating Temperature Range
0°C - 40°C
Cooling Type
External Aluminum Heat Sink with Internal Speed Controlled Fan
Power Supply
UREC Universal Mains Switch Mode Power Supply (SMPS) with Power Factor Correction (PFC) and Standby Converter
Power Input
AC 100V - 240V 50Hz/60Hz
Mains Connector
Dual (IN/OUT) Neutrik powerCON TRUE1 TOP®
Power Consumption
425W
Recommended Subwoofer
LAs518A
Special Features
Speaker Cabinet Auto-Identification via Software
Fittings
16 x M8 threaded inserts | 1 x M20 pole mount socket
Handles
1 on Each Side, 2 on the Back
Grille
Black Perforated Steel
Construction
Multi-Laminate Birch Plywood
Finish
Semi-Matte Black Polyurea Coating
Dimensions (WxHxD)
370 x 830 x 445 mm (14.6 x 32.7 x 17.5 in)
Net Weight
36kg (79.4lb)
Shipping Weight
38.5kg (84.9lb)
Accessories
Rain Cover | Horizontal/Vertical U-Bracket | Horizontal/Vertical Frame | Flight-Case
