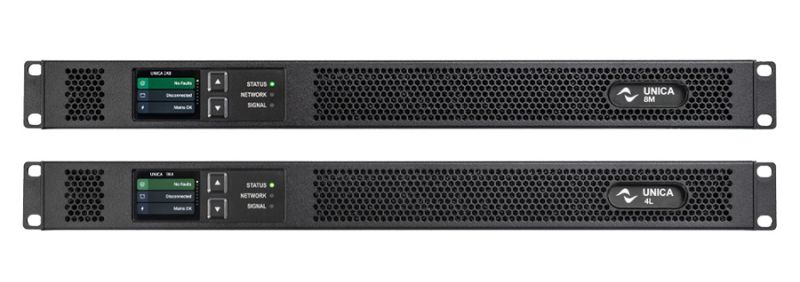

UnicaTM

8-Channel Fixed Installation Amplifier Platform

The UnicaTM Series is a

compact, 1RU amplifier platform

developed primarily for installed

applications. The 8-channel

version includes 1kW, 2kW, 4kW,

and 8kW total power models,

making UnicaTM one of the most

power-dense solutions available.

The output channels can

drive Lo-Z and 70/100V lines

seamlessly, delivering up to

twice the rated power when

asymmetrically loaded, resulting

in 2000W @4Ω for the 8kW

model. The power supply allows

worldwide operation (100-

240VAC), and it is equipped with

the latest generation of single-

stage power factor correction

(PFC). The proprietary Smart Rails

Management (SRM) allows the

supply rails to adapt in real time

to the required output voltage to

maximize efficiency and reduce

idle losses.

UnicaTM platform features

Powersoft’s next-generation DSP

for state-of-the-art processing

and audio performance. The three

1Gb Ethernet ports, along with the

native DanteTM and AES67 support

allow for different network

topologies including daisy-chain

and DanteTM redundant.

The front panel display allows

quick access to the amplifier

operating status information for

local monitoring. The PoE (Power

over Ethernet) input allows for

short recovery time in case of

mains loss, as well as testing

and monitoring loudspeakers

24/7 without the need for mains

power.

Lastly, UnicaTM Series amplifiers

natively support cloud connectivity

for remote monitoring and control

from any device anywhere in the

world via the Powersoft Cloud.

f Medium to large-scale venues

f Main systems, central or

distributed, subwoofers, hi-Z/lo-Z

f Mission critical applications

f Theatres, performance venues

f Houses of worship

f Convention centres

f Business centres

f Cruise ships

POWERSOFT.COMUnicaTM

8-Channel Fixed Installation Amplifier Platform

Specifications

Channel Handling

Output Stage 1K8 2K8 4K8 8K8

Number of output channels 8 Hi-Z or Lo-Z

(bridgeable per ch. pair) Commercial total rated power 1000 2000 4000 8000 W

Phoenix PC 5/8-STF1-7,62

per channel @ 100 V (symmetrical)* 125 250 500 800 W

Number of input channels

per channel @ 70 V (symmetrical)* 125 250 500 1000 W

Analog 8 Phoenix MC 1,5/6-ST-3,81

per channel @ 16 Ω (symmetrical)* 125 250 500 650 W

DanteTM/AES67 8 3 x RJ45

per channel @ 8 Ω (symmetrical)* 125 250 500 1000 W

Audio

Default gain 32 dB

Input sensitivity 2.84 Vrms / 11.3 dBu

Output noise floor (Analog Input) -72 dBV(A) typical

SNR (Analog Input) 112 dB(A)

Maximum output power

per channel @ 4 Ω (symmetrical)* 125 250 500 1000 W

per channel @ 2 Ω (symmetrical)* 125 250 500 1000 W

per bridged pair @ 8 Ω (symmetrical)* 250 500 1000 2000 W

per bridged pair @ 4 Ω (symmetrical)* 250 500 1000 2000 W

per channel @ 100 V (asymmetrical)** 250 500 1000 2000 W

per channel @ 70 V (asymmetrical)** 250 500 1000 1500 W

per channel @ 16 Ω (asymmetrical)** 250 500 500 750 W

Output noise floor (DanteTM/AES67 Input) -76 dBV(A) typical

per channel @ 8 Ω (asymmetrical)** 250 500 1000 1500 W

SNR (DanteTM/AES67 Input) 116 dB(A)

per channel @ 4 Ω (asymmetrical)** 250 500 1000 2000 W

per channel @ 2 Ω (asymmetrical)** 250 500 1000 W

Max input level >+24 dBu

140 160 Frequency Response 20 Hz - 20 kHz +0.0 dB/-1.0 dB, @ 8 Ω

Crosstalk Input impedance 20 kΩ balanced

THD+N (from 0.1 W to Half Power) < 0.05%

Input Power 65 65 65 65 W

SMPTE IMD (from 0.1 W to Half Power) < 0.01%

Idle

Current Draw 0.707 0.707 0.707 Damping factor >2500 20Hz to 500 Hz

@ 115 V

Thermal Loss 222 222 222 DSP

1/8

Max Power

@ 4Ω

Input Power 253 406 729 1380 W

Current Draw 2.31 3.61 6.44 Thermal Loss 437 532 781 AD converters DA converters Latency 24 Bit Tandem™ @ 48 kHz

130 dB(A) Dynamic Range - 0.00005 % THD+N

24 Bit Tandem™ @ 48 kHz

132 dB(A) Dynamic Range - 0.00003 % THD+N

2.6 ms analog Input to amplifier Output

Input Power 73 73 73 73 W

Onboard memory Store and recall up to 50 amplifier snapshot

Delay 2 s (input) + 100 ms (output) for time alignment

Equalizer

Crossover Limiters Raised-cosine, custom FIR, parametric IIR:

peaking, hi/lo-shelving, all-pass,

band-pass, band-stop, hi/lo-pass

linear phase (FIR), Butterworth,

Linkwitz-Riley, Bessel: 6 dB/oct to 48 dB/oct (IIR)

RMS voltage, RMS current, Peak limiter, TruePower™, Dynamic EQ

Damping control Active DampingControl™

Loudspeaker diagnostic Startup time Pilot tone monitoring, average impedance monitoring,

load impedance measurement

<10 s

<0.5 s (with PoE backup power)

Construction

1000 Maximum unclipped output voltage 160 160 Vpeak

Maximum output current 25 30 40 48 Apeak

<-80dB typical, 20Hz to 1 kHz range

*: Available by driving and loading all the channels symmetrically. **: Maximum power-sharing capacity per channel

<-60dB @20kHz typical

Power & Thermal 1K8 2K8 4K8 8K8

0.707 A

222 rms

BTU/h

12 A

1297 rms

BTU/h

0.605 A

2.24 rms

249 BTU/h

1360 W

6.1 A

431 553 1228 rms

BTU/h

80-265 VAC @ 50/60 Hz

+10% -10%

TT/TN

II

IEC C20 inlet (20 A max)

region-specific power cord provided

43 W

Idle

Current Draw 0.605 0.605 0.605 @ 230 V

Thermal Loss 249 249 249 1/8

Max Power

@ 4Ω

Input Power 251 412 724 Current Draw 1.45 3.51 Thermal Loss 764 Power supply Universal regulated switch mode with PFC and SRM

Nominal Voltage 100-240 VAC @ 50/60 Hz (400 VAC surge)

Operating Voltage Supply tolerance Power system Overvoltage category Class of equipment I

AC Mains connector Eco Mode consumption Dimensions Weight 489 x 400 x 44.3 (WxDxH) mm

19.3 x 15.8 x 1.7 (WxDxH) in

7.9 Kg (17.4 lb)

Standby consumption 20 W Typical, CPU fully functional

PoE Input Class 4 or higher

IP Class IP 20

Networking

Environmental

Network 3 x Gigabit Ethernet ports RJ45 connectors

Operating temperature range 0°C to +50°C (derating above 35°C)

Network modes Switched Mode, Split-Redundant Mode

Storage relative humidity range 10% to 85% humidity (non condensing)

Remote interface ArmoníaPlus™, Powersoft Cloud

Data subject to change without notice.
