Unica 4T

4-Channel Amplifier Platform for Touring Applications

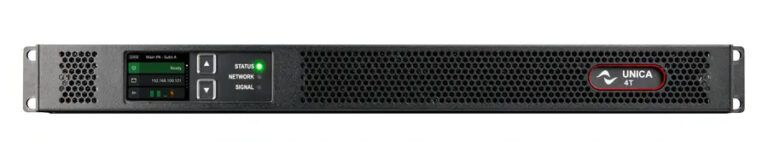

The touring version of UnicaTM is

a compact, 1RU amplifier platform

developed for rental companies and

live shows. This 4-channel version

features a 20.8kW total power

model, keeping true the power

density of the UnicaTM platform.

The output channels can deliver

up to 7500W @ 2.7 Ω for the

20K4T model when asymmetrically

loaded. The power supply allows

worldwide operation (100-

240VAC), and it is equipped with

the latest generation of single-

stage power factor correction

(PFC). The proprietary Smart Rails

Management (SRM) allows the

supply rails to adapt in real-time

to the required output voltage to

maximize efficiency and reduce idle

losses.

UnicaTM platform features

Powersoft’s next-generation DSP

for state-of-the-art processing and

pristine audio performance. The

three 1Gb Ethernet ports, along

with the native DanteTM and AES67

support, allow for different network

topologies, including daisy-chain

and DanteTM redundant.

Studio-grade Galvanically

Insulated Analog Inputs for

each channel provide immunity

to noise coupling, excellent

common mode rejection ratio

(>90dB up to 1KHz), and abuse

tolerance on the analog inputs.

The front panel display allows

quick access to the amplifier

operating status, including

headroom, input levels, and more

information for local monitoring.

Custom Ruggedized Phoenix

Connectors Housings, designed for

heavy-duty applications, provide

strain relief and quick locking/

unlocking functionality (pat.

pending).

Lastly, UnicaTM Series amplifiers

natively support cloud connectivity

for remote monitoring and control

from any device anywhere in the

world via the Powersoft Cloud.

f Large scale touring systems

f Arena & concert halls

f Stadiums & open-air venues

f Multi-zone venues & live clubs

f Mission critical applications

f Theaters, performace venues

f Houses of worship

POWERSOFT.COMUnica 4T

4-Channel Amplifier Platform for Touring Applications

Specifications

Channel Handling

Output Stage 20K4

Number of output channels 4

(bridgeable per ch. pair)

Phoenix PC 5/8-STF1-7,62

(with patent pending shells)

Commercial total rated power @ 2.7 Ω full load 20800 W

per channel @ 16 Ω (symmetrical)* 1300 W

Number of input channels

per channel @ 8 Ω (symmetrical)* 2500 W

Analog Dante/AES67 4 Phoenix MC 1,5/6-ST-3,81

(with patent pending shells)

8 3 x RJ45

per channel @ 4 Ω (symmetrical)* 4400 W

Audio

Default gain 32 dB

20K4

Maximum output power

per channel @ 2.7 Ω (symmetrical)* 5200 W

per channel @ 2 Ω (symmetrical)* 5500 W

per bridged pair @ 8 Ω (symmetrical)* 8800 W

per bridged pair @ 5.4 Ω (symmetrical)* 10400 W

per channel @ 16 Ω (asymmetrical)** 1400 W

per channel @ 8 Ω (asymmetrical)** 2700 W

Input sensitivity 3.9 V

rms

14 dBu

per channel @ 4 Ω (asymmetrical)** 5400 W

Output noise floor (Analog Input) -72 dBV(A) typical

per channel @ 2.7 Ω (asymmetrical)** SNR (Analog Input) 116 dB(A)

per channel @ 2 Ω (asymmetrical)** Output noise floor (DanteTM Input) -76 dBV(A) typical

SNR (DanteTM Input) 120 dB(A)

Max input level Frequency Response 20 Hz - 20 kHz +0.0 dB/-1.0 dB, @ 8 Ω

Crosstalk <-80dB typical, 20Hz to 1 kHz range

<-60dB @20kHz typical

Input impedance 20 kΩ balanced/unbalanced, fully floating

Input Power 68.6 W

THD+N (from 0.1 W to Half Power) < 0.05%

SMPTE IMD (from 0.1 W to Half Power) Damping factor DSP

AD converters DA converters Latency 24 Bit Tandem™ @ 48 kHz

130 dB(A) Dynamic Range - 0.00005 % THD+N

24 Bit Tandem™ @ 48 kHz

132 dB(A) Dynamic Range - 0.00003 % THD+N

2.5 ms analog Input to amplifier Output

Onboard memory Store and recall up to 50 amplifier snapshot

Delay 2 s (input) + 100 ms (output) for time alignment

7500 W

5500 W

Maximum unclipped output voltage 220 Vpeak

Maximum output current 80 Apeak

*: Available by driving and loading all the channels symmetrically. **: Maximum power-sharing capacity per channel

>+24 dBu

Power & Thermal 20K4

0.93 A

234 rms

BTU/h

19.37 A

1915 rms

BTU/h

0.83 A

281 rms

BTU/h

13.38 A

2680 rms

BTU/h

Idle

Current Draw < 0.01%

>2500 20Hz to 500 Hz

@ 120 V

Thermal Loss 1/8

Max Power

@ 4Ω

Input Power 2283 W

Current Draw Thermal Loss Input Power 82.5 W

Idle

Current Draw @ 230 V

Thermal Loss 1/8

Max Power

@ 4Ω

Input Power 2987 W

Current Draw Equalizer

Crossover Limiters Raised-cosine, custom FIR, parametric IIR:

peaking, hi/lo-shelving, all-pass,

band-pass, band-stop, hi/lo-pass

linear phase (FIR), Butterworth,

Linkwitz-Riley, Bessel: 6 dB/oct to 48 dB/oct (IIR)

RMS voltage, RMS current, Peak limiter, TruePower™, Dynamic EQ

Thermal Loss Power supply Universal regulated switch mode with PFC and SRM

Nominal Voltage 100-240 VAC @ 50/60 Hz (400 VAC surge)

Operating Voltage 80-265 VAC @ 50/60 Hz

Supply tolerance +10% -10%

Damping control Active DampingControl™

Power system TT/TN

Loudspeaker diagnostic Startup time Pilot tone monitoring, average impedance monitoring,

load impedance measurement

<10 s

<0.5 s (with PoE backup power)

Overvoltage category II

Class of equipment I

AC Mains connector Construction

Eco Mode consumption IEC C20 inlet (20 A max)

region-specific power cord provided

35 W

Dimensions Weight 489 x 400 x 44.3 (WxDxH) mm

19.3 x 15.8 x 1.7 (WxDxH) in

8 Kg (17.6 lb)

Standby consumption 20 W Typical, CPU fully functional

PoE Input Class 4 or higher

IP Class IP 20

Networking

Environmental

Network 3 x Gigabit Ethernet ports RJ45 connectors

Operating temperature range 0°C to +50°C (derating above 35°C)

Network modes Switched Mode, Split-Redundant Mode

Storage relative humidity range 10% to 85% humidity (non condensing)

Remote interface ArmoníaPlus™, Powersoft Cloud

Data subject to change without notice.
